Home > Our Product > LED intelligent traffic signal light series > High flux traffic signal > 200mm High Power LED Traffic Light
Features/Benefits Specifications Project Download
  • Reduce overall operating & maintenance costs.
  • Reduces emergency lamps outs.
  • Reliability & traffic safety.
  • Improved visibility over life of the product.
  • Energy saving: 90% reduction in power consumption vs incandescent.
  • Design minimizes sun phantom effects.
  • Easy to install into existing signal enclosure.

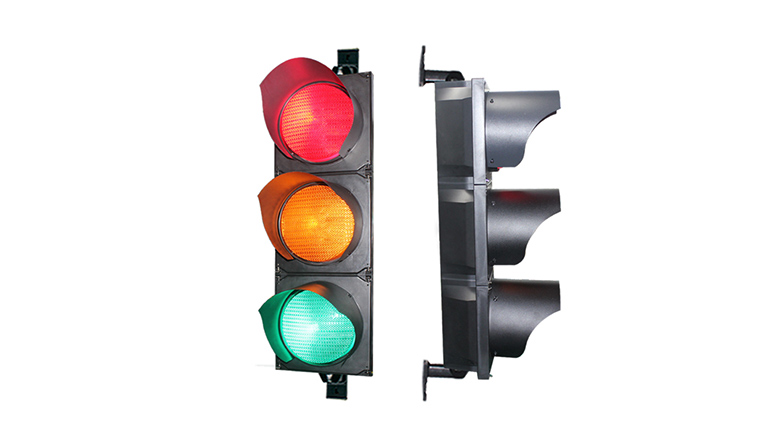

Model: NBJD213F-HP 200mm High Power LED Traffic Light
Items Parameters
Size 200mm 200mm 200mm
Color Red Yellow Green
LEDs (pcs) 5 5 5
Wavelength 625±5 590±5 505±2
Module shape Round Round Round
Power consumption (W) <5 <5 <5
Housing material PC ( UV-stabilized polycarbonate)
Voltage (V) 12-24V DC  100-277V AC
Luminance (cd) 800cd
Operating temperature (℃) -30℃~+ 60 ℃
Insulation resistance ≥2M
Total harmonic distortion <20%
IP rate IP65
