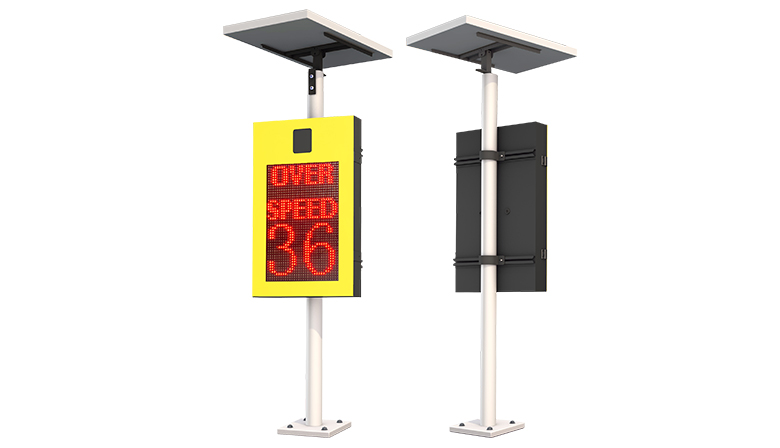

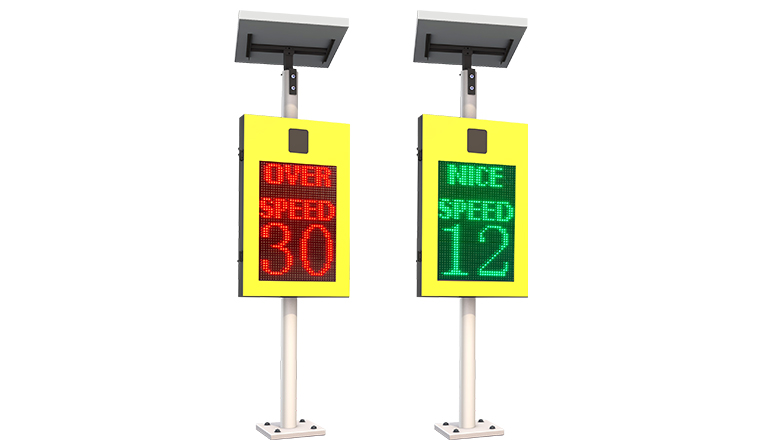

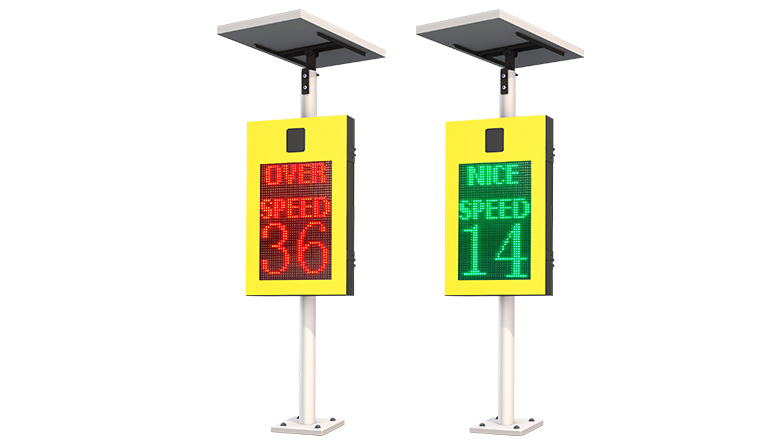

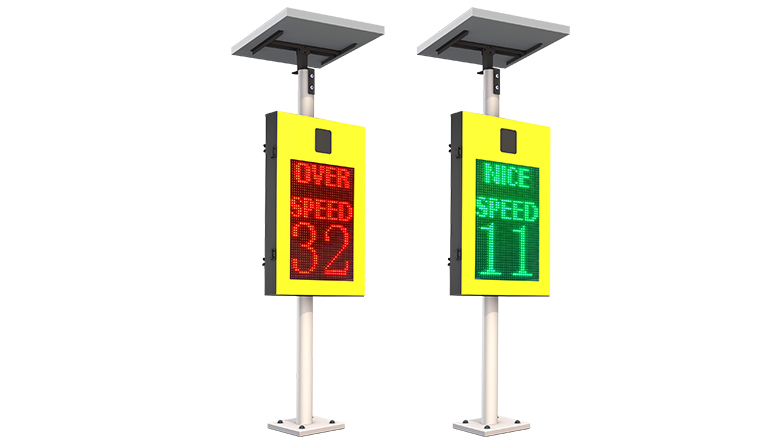

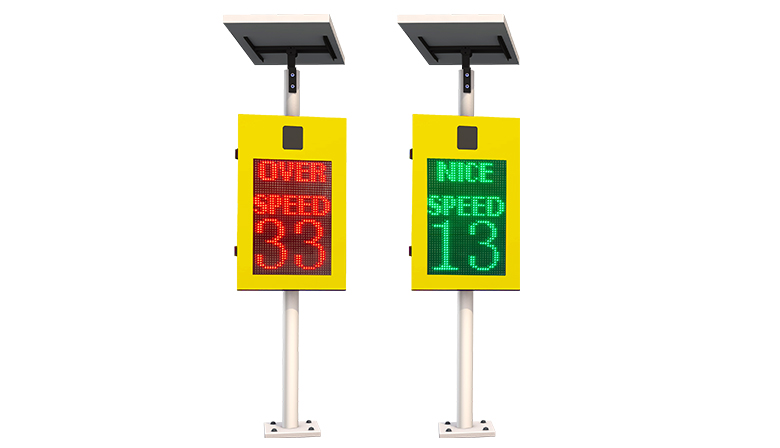

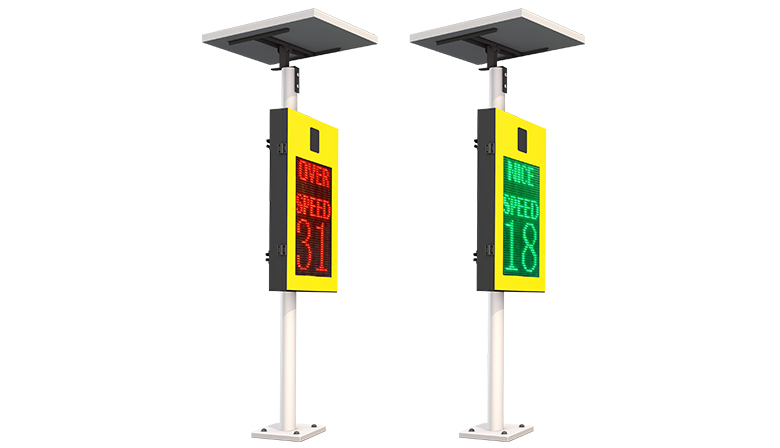

The radar Speed Sign uses the principle of radar speed measurement, combined with LED technology, to display the speed of the vehicle to the driver in time. Generally speaking, the speed feedback sign consists of three parts: 1) Speed limit sign; 2) Radar speed measuring device; 3) Electronic display board; The display board will show the speed of the vehicle, and if there are multiple vehicles driving in the area at the same time, the electronic display board will show the speed of the fastest vehicle among these vehicles.

The vehicle speed feedback sign is a device equipped with a speed limit sign and can display the speed of passing vehicles in the detection area on the LED screen in real-time. The vehicle speed feedback sign is widely used in the subsequent radar speed measurement for traffic speed measurement.

The driver radar Speed sign (DFS) displays the speed of the vehicle on the LED screen through radar speed measurement. The advanced speed feedback sign can also display the green speed value for average speed, and the read speed value for Overspeed to warn the driver. Drivers pay attention to controlling their speed. Surveys have shown that vehicle feedback signs can be effective in reducing vehicle speed.

The power supply mode of the vehicle speed feedback sign can be a 220V mains power supply, or it can be combined with a solar panel and battery power supply. In other remote speed-limited sections such as highways where it is inconvenient to draw electricity, the solar power supply is efficient.

In addition, the speed feedback sign can also be equipped with a speeding camera, and the vehicle can take a photo of the speeding vehicle when it is speeding, and send it back to the control center.

Product advantage:

1.Built-in German doppler traffic radar, strong anti-interference, high accuracy.

2. Built-in TFT display for radar setting device,easy to operate, simple and powerful user interface.

3. The radar sensitivity can be set according to traffic and vehicle conditions, with 1-15 levelsof sensitivity adjustable, 1 being the high est sensitivity.

4. Red and green two-color display screen display

5.Imported professional traffic radar is adopted,with high-precision vehicle real-time display function, accurate and reliable speed measurement results, strong anti-drying ability and high precision.

6. Radar speed limit card supports customization,which are 30,40,50,60....or other customized values.

Product feature:

LED Screen	320 x 480mm
Front speed limit pane	30 km/40/50/60(optional)
Display Color Red and green	Red and green
Light decay	10000h/3 years working time, light decay (mcd)≤20%
Material	3M engineering grade
Speed measurement error	<±1KM/H
Parameter setting	Manual button
Solar panel	80watt
Battery	3pcs 13ah lithium battery
Mounting Height	2.5 - 4m
Installation method	Hug hoop
Power consumption	≤30W
Display	P10
Housing material	Painted iron
Modulation	W detection of moving vehicles,
Continuous rainy days	7-10 days
Warranty Period	1 year
Waterproof level	IP 54
Certified	CE,RoHS,ISO9001
Visible distance	Above 300 Meters

Product specification:

Parameters:	Description
Working voltage:	Solar powered DC12/24V AC220V can be chose
Radar working frequency:	24.125GHZ
Detection speed range:	10-250KM/H
Speed measurement error	±1 to ±3 KM/H (when the angle between the direction of motion and the radar beam azimuth is 0 degrees)
Radar response time	≤50ms
Detection distance:	Standard 200Meters（100meters，50meters ）
