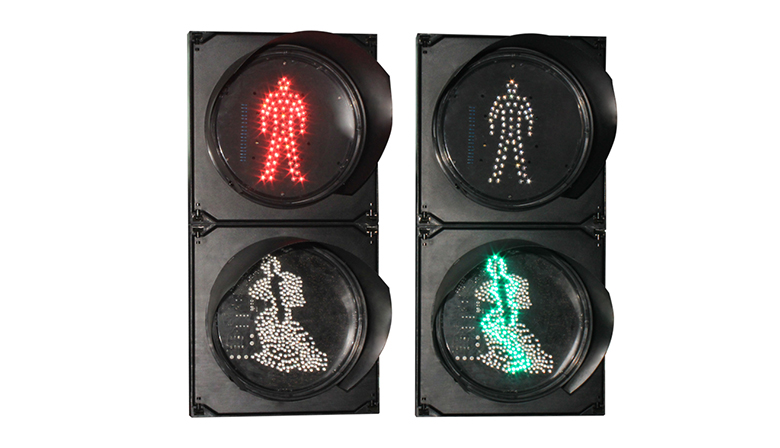

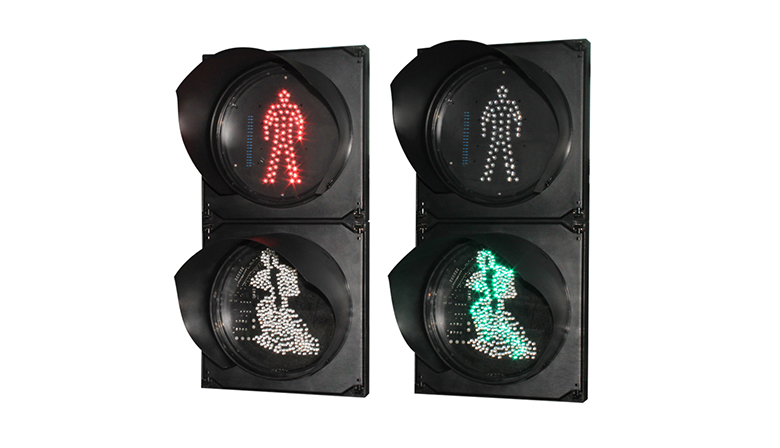

200mm red+dynamic green pedestrian traffic light
200mm still red+dynamic green traffic lights
( 2 Years Warranty intelligent traffic lights )
Features/Benefits
Specifications
Project
Download
- Using high-brightness Taiwan Epistar chip lamp beads, the color is eye-catching, the color is distinct, and it has good visibility regardless of day and night. Low loss, uniform brightness, standard chromatogram, long life. Compared with traditional light sources (such as incandescent lamps, tungsten halogen lamps), energy saving is about 85%.
- The PCB circuit board is controlled by industrial-grade single-chip microcomputer, with a wide temperature range of -30-75°C. With independent watchdog and hardware anti-interference measures. One lamp bead is damaged and will not affect the work of other lamp beads. Controlled by a software program, the pedestrian pattern display of the countdown pedestrian light is synchronized with the countdown display value.
- Using sealed waterproof constant power supply, it can work normally in the range of 100V-277V, with overvoltage, surge voltage resistance, low temperature -40 degrees to +50 degrees Operating voltage: DC 12V 24V AC 100V-277V.Anti-surge power, better than national standards.Power factor>0.93.
- The product is produced by a self-developed plastic mold, using ABS+PC (polycarbonate) for injection molding, without any recycled materials. The sealing rubber ring is made of silicone material, which is weather resistant, and the working temperature is -40℃—+70℃. High flame retardant grade.
- The waterproof structure adopts flexible silicone rubber sealing ring parts, dust-proof, waterproof, flame retardant, anti-ageing, the lamp shell is shockproof, anti-fall, no diamond, ventilation, good heat dissipation, IP65 waterproof. Coupled with the overall ultra-thin design, light and easy to install, the overall appearance is beautiful.
- Working normally in the temperature of-40~+60℃, avoiding the normal operation of the product due to the change of ambient temperature.
- The aluminum sun visor avoids direct sunlight to affect the color light. The high temperature electrostatic powder spraying process is adopted, which is not rusty and not easy to oxidize. The material is resistant to high temperature, severe cold, deformation, aging, waterproof and moisture-proof.
- Shows the walking movement of the runner. This light has the function of accelerating the running movement when the pedestrian passing time is shorter, and it will flash together to make the display more intuitive, eye-catching and easy to understand.
| Model: NBRX212D-2 | ||
|---|---|---|
| Items | Parameters | |
| Size | 200mm | 200mm |
| Color | Red | Green |
| LEDs (pcs) | 64 | 314 |
| Wavelength | 625±5 | 505±2 |
| Module shape | Round | Round |
| Power consumption (W) | <5 | <6 |
| Housing material | PC ( UV-stabilized polycarbonate) | |
| Voltage (V) | 12-24V DC 100-277V AC | |
| Luminance (cd) | 800cd | |
| Operating temperature (℃） | -30℃~+ 60 ℃ | |
| Insulation resistance | ≥2M | |
| Total harmonic distortion | <20% | |
| IP rate | IP65 | |
