Traffic Control Solution Provider
LED intelligent traffic signal light

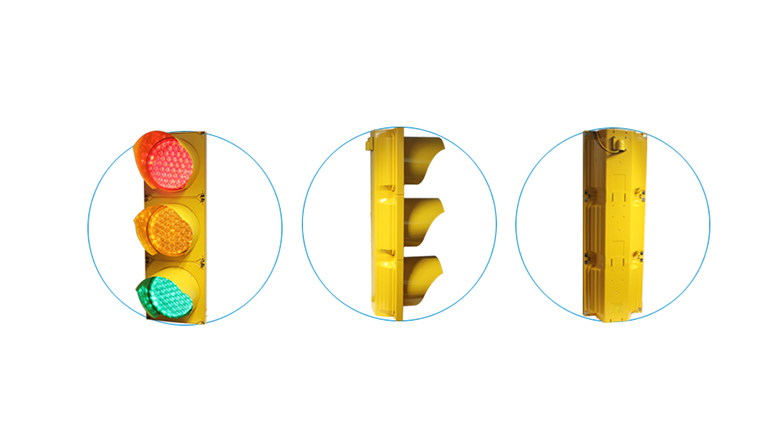

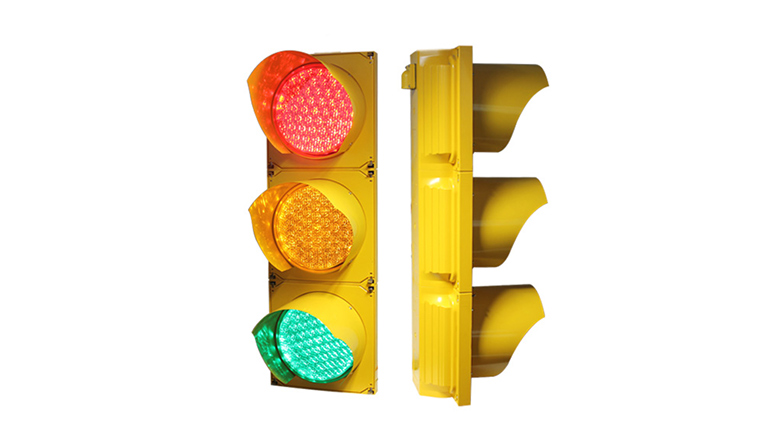

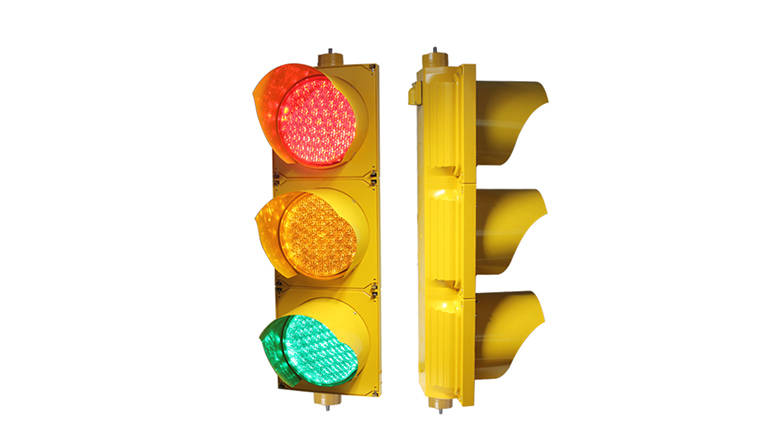

200mm Energy-saving intelligent traffic lights
( 2 Years Warranty intelligent traffic lights )
Features/Benefits
Specifications

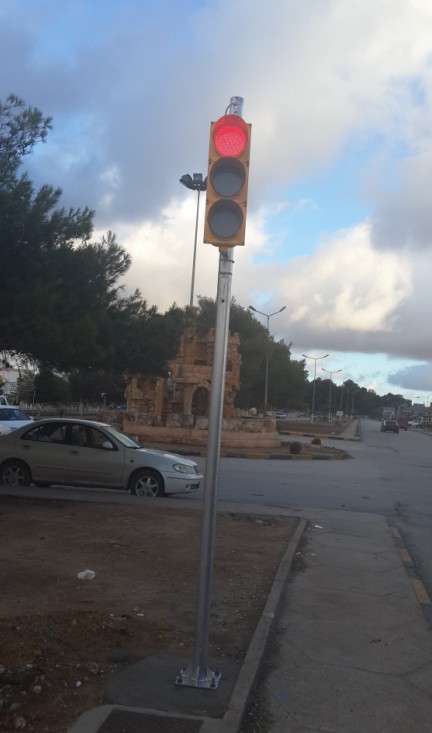

Project
Download
- Energy saving, long life
- Environmental adaptability
- Short switching times between different colors

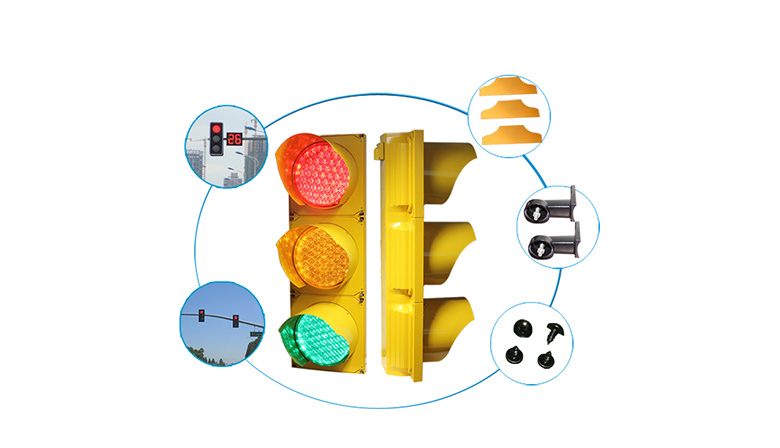

- Variety of installation to fit for the different environments
- Reasonable structure, atmosphere, simple and beautiful appearance
- Strong protective properties (waterproof, dustproof, shock)
- Fast method using the mold assembly, maintenance and replacement parts quickly abnormalities
- Visual effects, color uniformity,far visual distance
| Moel: NBJD213F-3Y | |||
|---|---|---|---|
| Items | Parameters | ||
| Size | 200mm | 200mm | 200mm |
| Color | Red | Yellow | Green |
| LEDs (pcs) | 61 | 61 | 61 |
| Wavelength | 625±5 | 590±5 | 505±2 |
| Module shape | Round | Round | Round |
| Power consumption (W) | <7 | <7 | <7 |
| Housing material | PC ( UV-stabilized polycarbonate) | ||
| Voltage (V) | 12-24V DC 100-277V AC | ||
| Luminance (cd) | 800cd | ||
| Operating temperature (℃） | -30℃~+ 60 ℃ | ||
| Insulation resistance | ≥2M | ||
| Total harmonic distortion | <20% | ||
| IP rate | IP65 | ||
