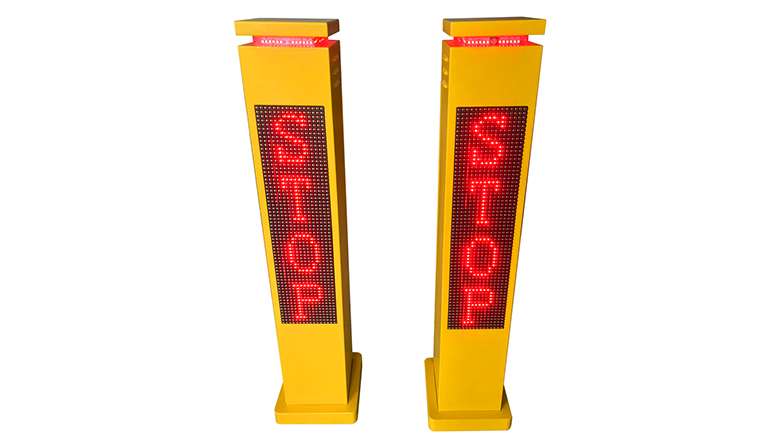

pedestrian crossing warning post light

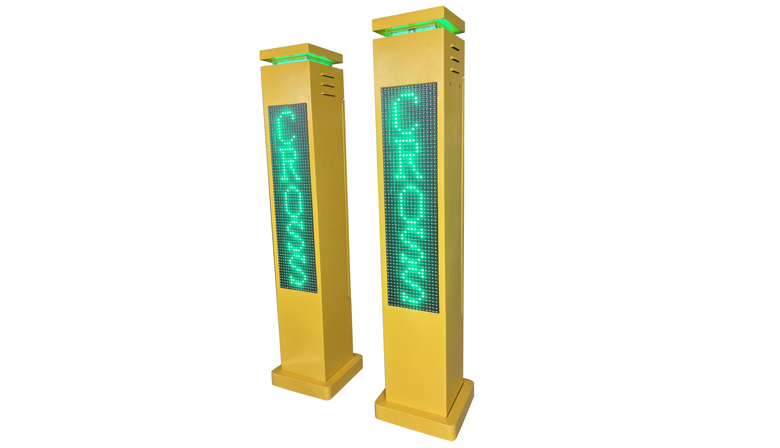

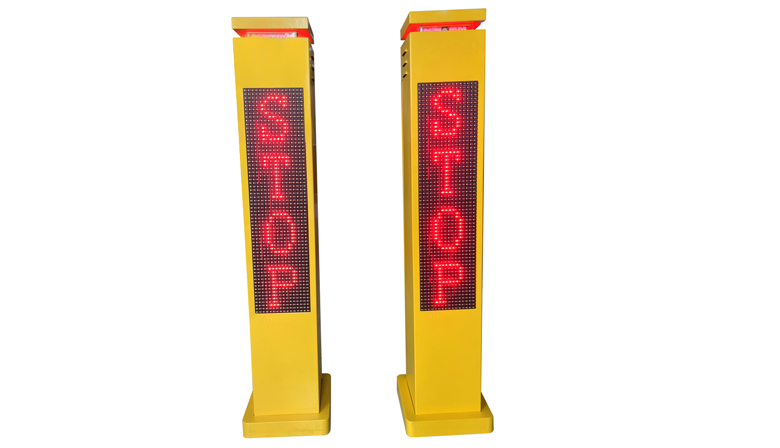

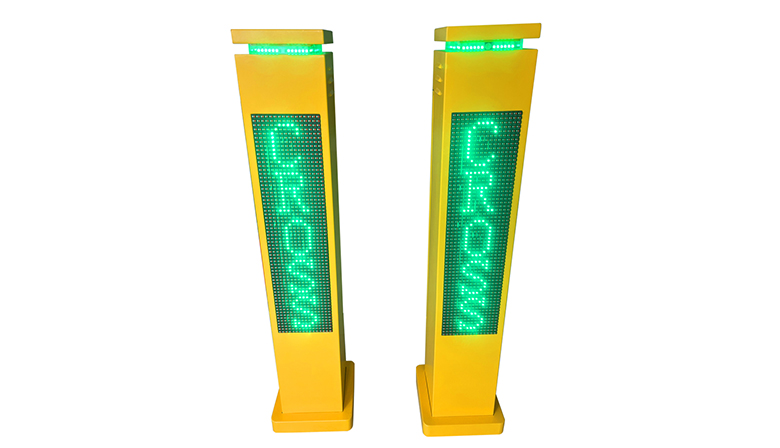

With the accelerating pace of modern society and the prevalence of smartphones as an indispensable part of people's lives, more pedestrians are walking while using their phones, posing significant safety hazards. This is particularly evident when crossing intersections, where it's easier to cause traffic accidents. In order to enhance safety when crossing intersections, our company has developed pedestrian warning pillars. These pillars utilize voice and screen displays to remind pedestrians not to run red lights, thereby reducing the occurrence of accidents.

Function Realize

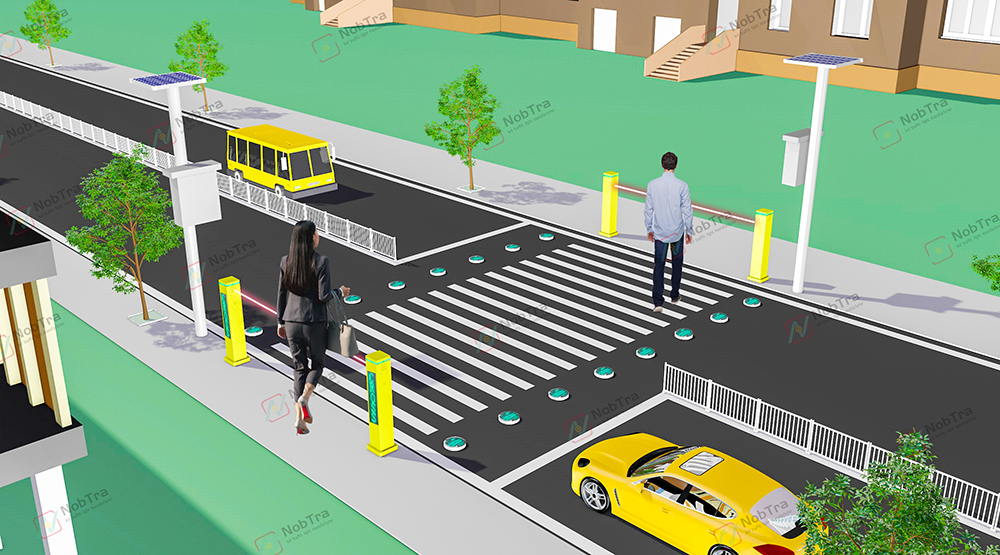

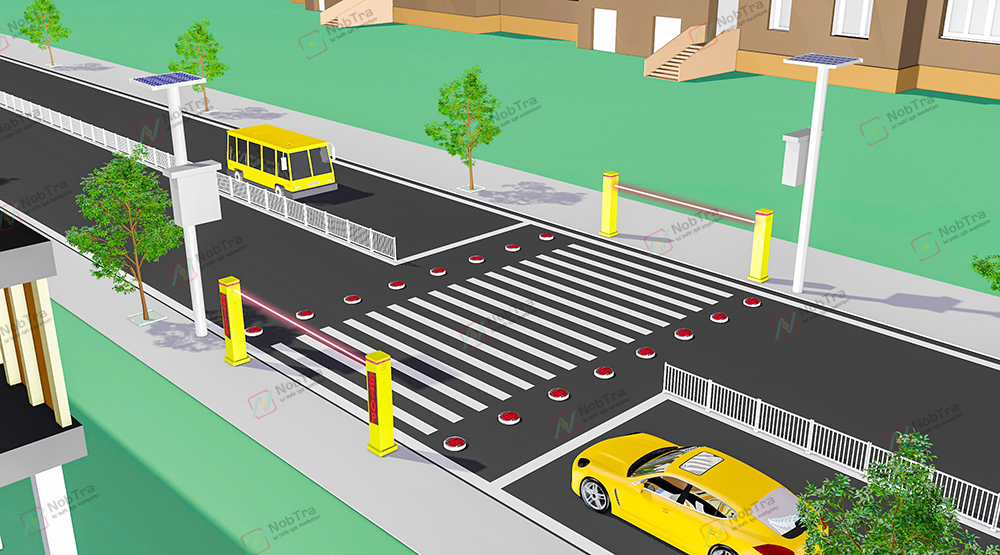

By installing the infrared emitter and receiver respectively on the warning post and aligning them with each other, the emitter emits infrared beams while the receiver receives these beams. When a pedestrian enters the beam path between the emitter and receiver, it obstructs or scatters some of the beams. As a result, the receiver cannot receive the infrared light, thus triggering an output indicating pedestrian violation of the red light, thereby controlling the warning sound broadcast.

Description:
1.Pedestrian warning bollards use infrared sensing to distinguish direction. When pedestrians trigger the sensor from the front, it is determined as jaywalking, and no action is outputted if pedestrians trigger the infrared sensor from the opposite direction. This design is suitable for installation on both sides of pedestrian cross walks.
2.Display screen and Warning voice messages can be customized
3.The detection signal adopts optical isolation, suitable for different types of traffic signal controllers, isolating interference to the core components of the traffic signal controller.

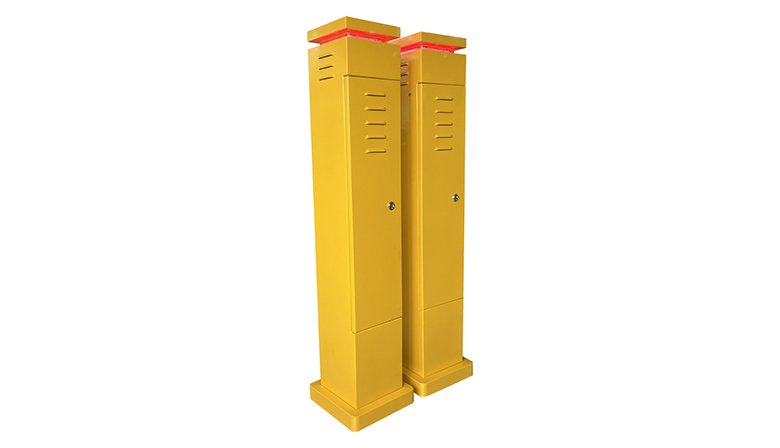

4.The shell undergoes high-voltage testing in accordance with safety regulations to prevent electric leakage from the shell causing harm to the human body.
5.Instantaneous triggering with no delay output ensures synchronous output of the warning sound.
6. Outputting relay signals can serve as input signals for the control machine detection. When pedestrians approach the warning bollard, the relay is activated, and the traffic controller detects the input signal, thereby outputting control signals to control the traffic lights on and off. (Can serve as a substitute for pedestrian crossing buttons)
