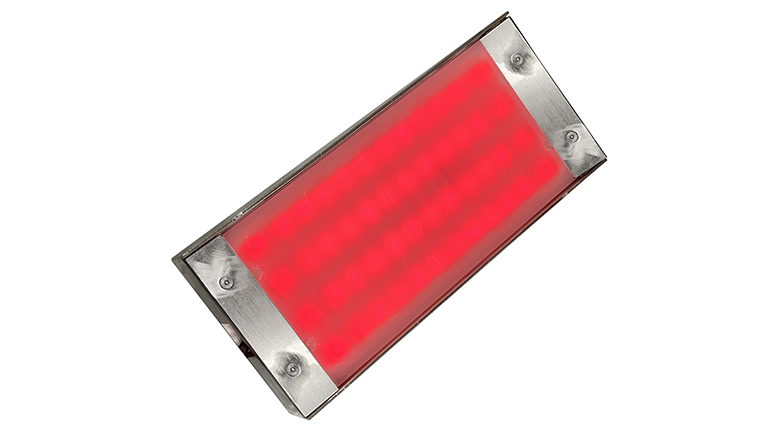

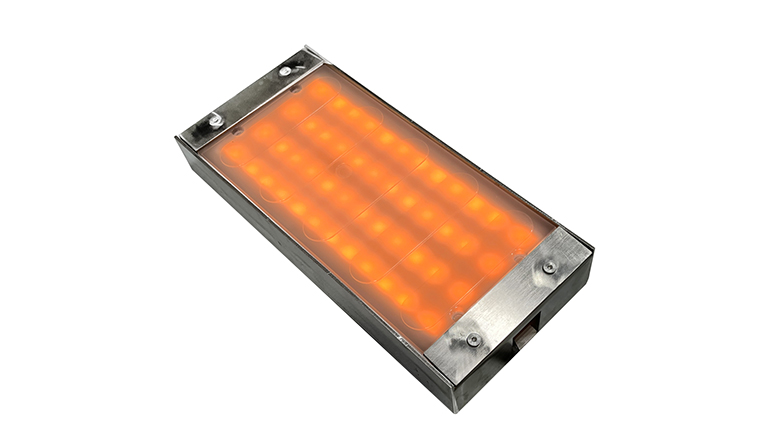

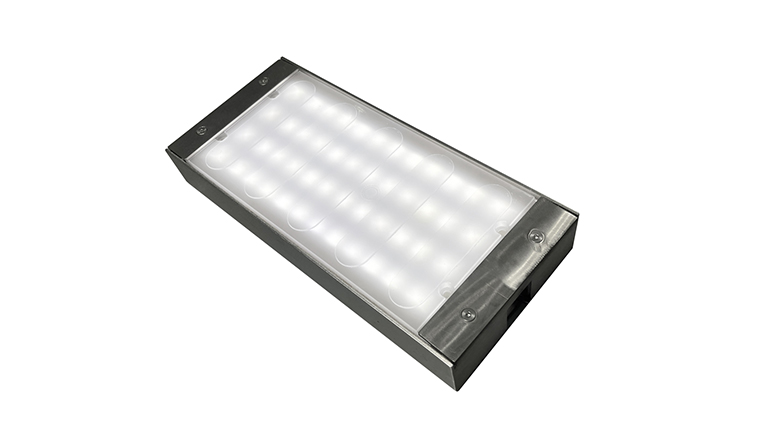

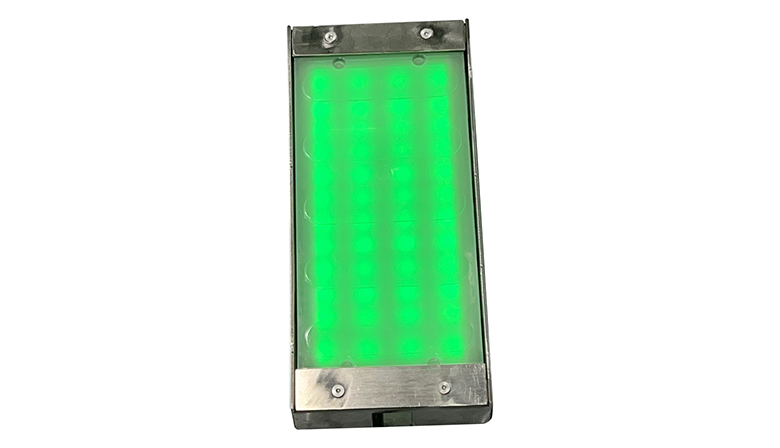

Energy-saving Smart zebra crossing led brick light
( 1Year Warranty led brick light)With the increasing number of means of transportation, more and more people choose to drive. Now people are very dependent on mobile phones, and there are a large number of people who bow their heads. They do not pay attention to traffic lights when traveling, and it is easy to run red lights by mistake, which brings great traffic pressure , in order to avoid traffic accidents and relieve traffic pressure, a smart pedestrian zebra crossing was developed in combination with practical applications. By installing smart pedestrian zebra crossing , the safety awareness of pedestrians is greatly improved, and drivers can detect pedestrians earlier when passing through traffic intersections. Cross the road and judge ahead of time.
The shell of intelligent pedestrian zebra crossing is made of PE material and molded. It is odorless, non-toxic, low-temperature resistant, and corrosion-resistant. With the addition of 3MM metal embedded parts, it can withstand more than 50 tons of pressure. The built-in drive adopts a safety voltage lower than that of the human body. Power supply ensures the safety of the human body, and the shell adopts IP67 waterproof design to ensure that it can work normally in rainy days. The pedestrian zebra crossing are connected in series by aviation joints, which saves time and is convenient for installation. The pedestrian zebra crossing and embedded parts are fixed by screws, which is convenient for maintenance and does not affect traffic. The light-emitting lamp beads use high-brightness epistar lamp beads, which have more stable performance and longer life.
Product feature:
Name |
Wavelength |
Color temperature |
Luminance |
LED quantity |
Red light |
625±5nm |
|
>6000mcd |
48LEDS |
Yellow light |
465±5nm |
|
>4500mcd |
48LEDS |
Green light |
520±5nm |
|
>12000mcd |
48LEDS |
White light |
|
5500-7500K |
>40000mcd |
48LEDS |
Working voltage |
24VDC |
|||
Working temperature |
-30℃—60℃ |
|||
Relative humidity |
10%-95% |
|||
Anti-stress |
>50T |
|||
Visual distance |
>500 Meter |
|||
Color |
Red, Yellow, Green,White |
|||
Rated power |
<3W |
|||
Dimension |
340(L)*153(W)*51.5(H)mm(Including Embedded parts) |
|||
Top shell material |
UV resistant and wear-resistant PC material |
|||
Bottom shell |
PC |
|||
Embedded parts material |
201 stainless steel |
|||
Working lifespan |
20,000Hours |
|||
Waterproof level |
IP67 |
|||
Install method |
Buried type |
Intelligent pedestrian zebra crossing are applied to one-shaped intersections, T-shaped intersections, crossroads, and various complex intersections, synchronous pedestrian traffic lights, and guide pedestrians to pass through traffic intersections safely.
