Home > Our Product > Vehicle loop detector > Infrared photocell sensor > Infrared photocell sensor
Features/Benefits Specifications Project Download
  • Outdoor double beam gain automatic adjustment, adapt to rain, fog, snow and other bad weather;
  • Special filters and circuits, resistant to strong light interference;
  • Optical lenses, faster adjustment, more convenient and more accurate;
  • Lightning protection circuit design.

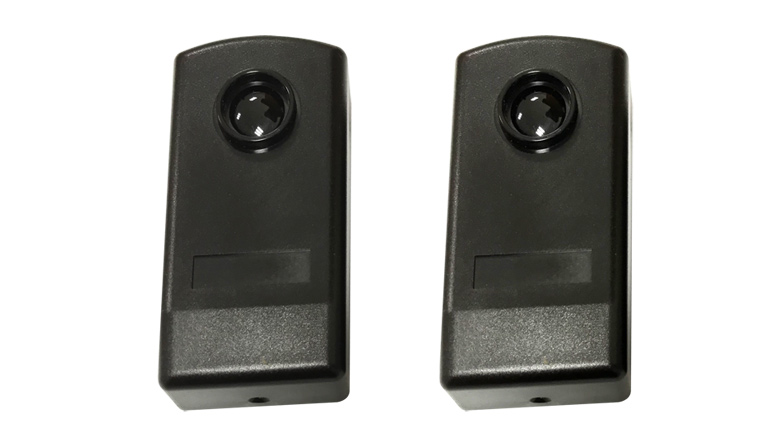

high quality photocell
Power supply 12/24(VAC/VDC)
Max.Range up 20Meters(indoor or outdoor)
Opera temperature -10-+60℃
Max.TX working current 25mA
Max. RX working current 35Ma
Max. Relay contact 500mA
IP rate IP55

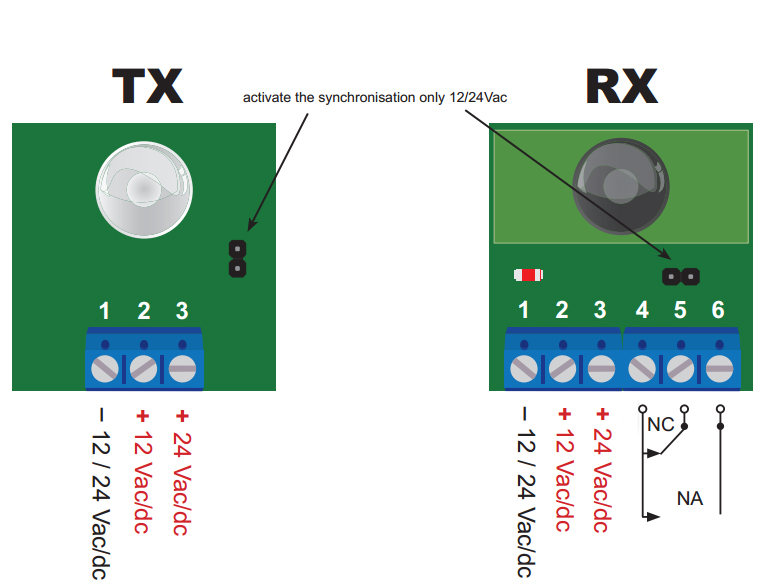

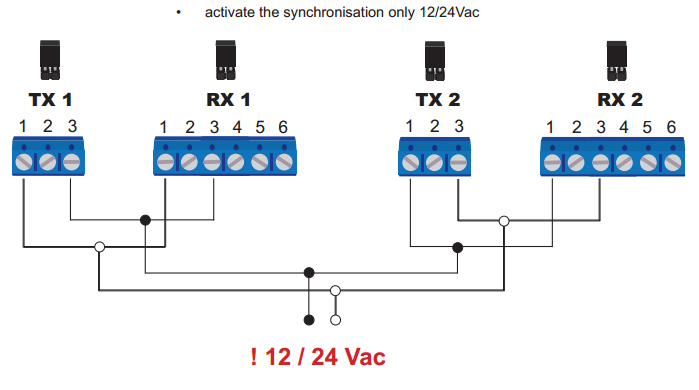

Connection:

Infrared photocell sensor connection


Install size:

 Infrared photocell sensor install size

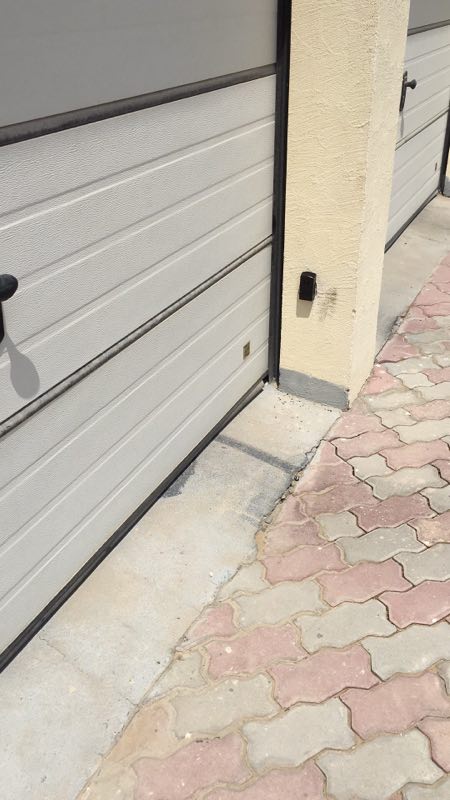

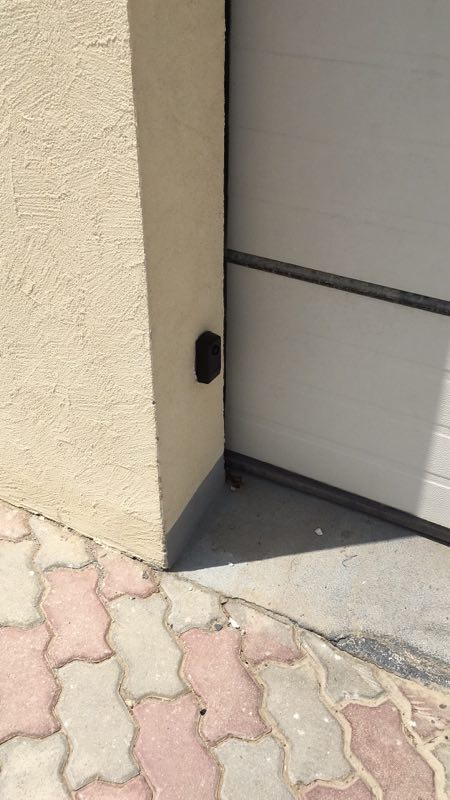

infrared sensor project

Infrared photocell sensor project
