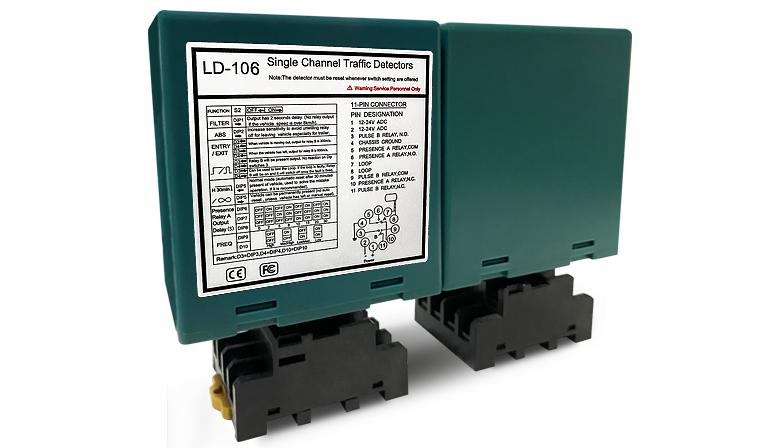

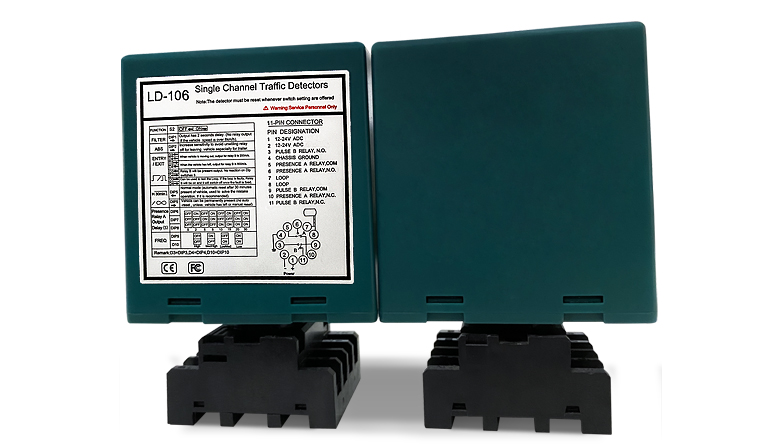

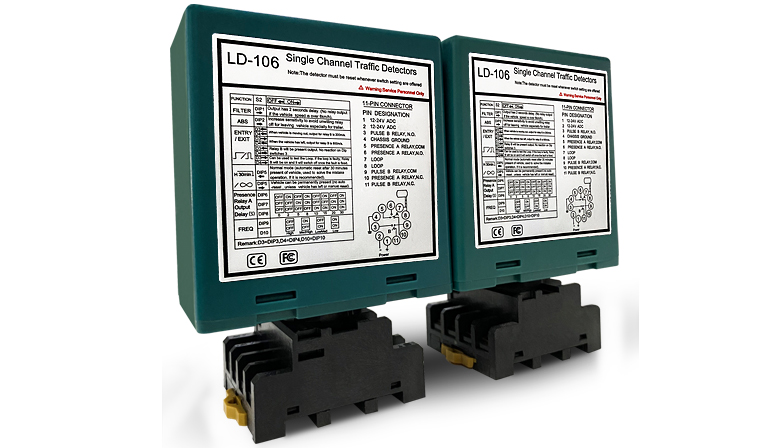

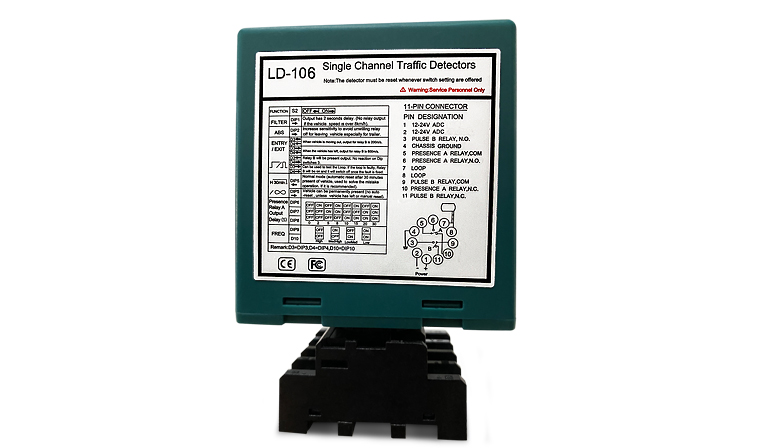

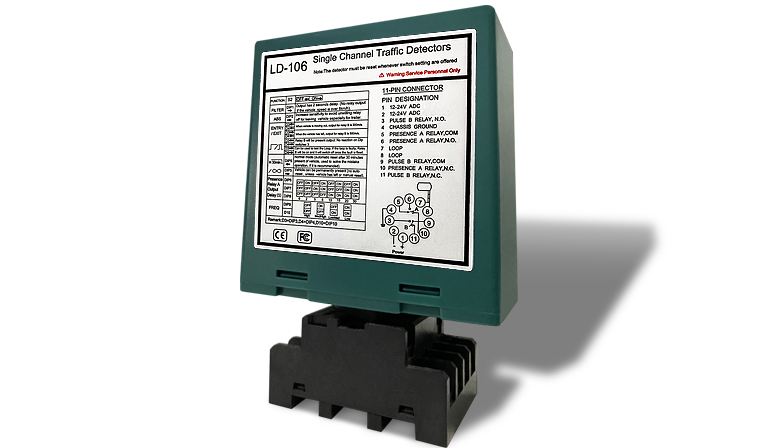

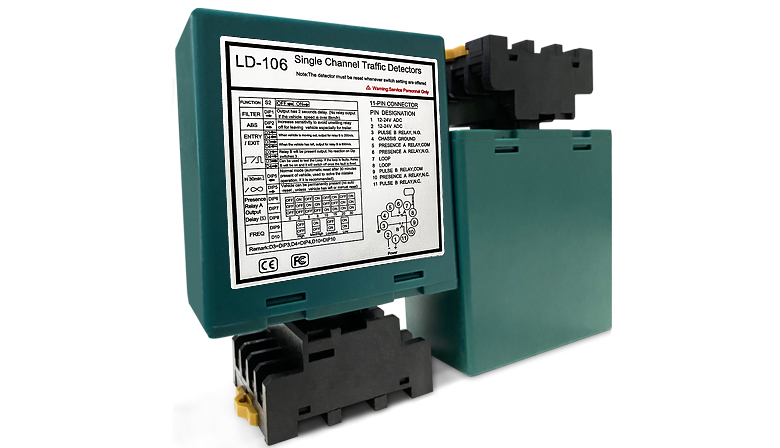

traffic loop detector
(2 years warranty traffic loop detector)
Features/Benefits
Specifications

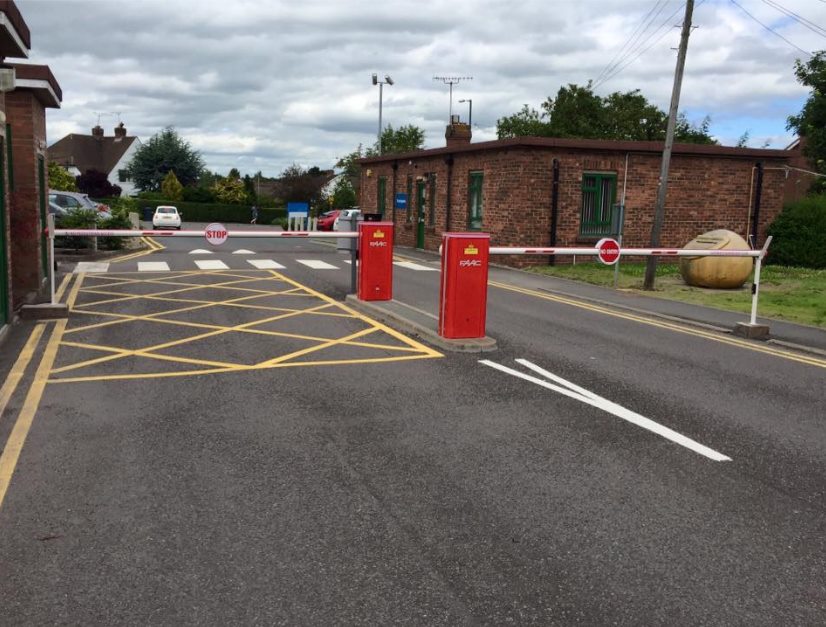

Project
Download
1. Compact Size: the compact and well engineered housing combined with all the industry requirements regarding features and functionality allows this detector to be incorporated into any new or existing vehicle detection system.
2. Diagnostic Capabilities: Comprehensive diagnostics capabilities allow for accurate diagnosis of loop and installation problems.
3. Selectable Presence Time: The output of the presence relay can be selected to limit a detect output to a fixed time(time>30 minutes) while a vehicle remains on the loop.
4. Sensitivity setting: The 16 sensitivity settings allow for finer adjustment of the detection level
5. Frequency setting: The 4 frequency settings provide greater flexibility in preventing crosstalk in multi-loop applications.
6. Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing .This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection
7. Two separate output relays: Presence Relay A is presence output, can be extended for 0,2,5,8,10,15,20 or 30 seconds. Pulse Relay B, programmable with external 10 way DIP switches, provide presence, pulse on entry, pulse on exit, or failed output.
Customer Reviews：
2. Diagnostic Capabilities: Comprehensive diagnostics capabilities allow for accurate diagnosis of loop and installation problems.
3. Selectable Presence Time: The output of the presence relay can be selected to limit a detect output to a fixed time(time>30 minutes) while a vehicle remains on the loop.
4. Sensitivity setting: The 16 sensitivity settings allow for finer adjustment of the detection level
5. Frequency setting: The 4 frequency settings provide greater flexibility in preventing crosstalk in multi-loop applications.
6. Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing .This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection
7. Two separate output relays: Presence Relay A is presence output, can be extended for 0,2,5,8,10,15,20 or 30 seconds. Pulse Relay B, programmable with external 10 way DIP switches, provide presence, pulse on entry, pulse on exit, or failed output.
Customer Reviews：
|
Technical Parameter for single channel vehicle detector |
Self-turning range |
20-2000H |
|
Response Times |
10-90MS |
|
|
Sensitivity |
0-F(0 is Low - F is High) |
|
|
Visual Indications |
Power LED-Red, Channel LED-Green |
|
|
ABS |
automatic sensitivity boost |
|
|
Relay time |
0,2,4,8,10,15,20,30 seconds |
|
|
Power Requirements |
110VAC or 230VAC |
|
|
relay signal |
presence signal and pulse signal |
|
|
Presence time |
NORMAL/INFINITE |
|
|
Product size |
92*76*42mm |
|
|
Label Language |
English |
|
|
Connections |
11-pin Submagnal( USA sytle) |
|
|
Storage Temperature |
-40 to 80 Celsius degree |
|
|
Normal Working Temperature |
-40 to 70 Celsius degree |
|
