Video Detection Camera ,Taking small size and stylish case . It can be used to detect vehicles that are waiting at or near the intersection. In addition, Video Detection Camera has a vehicle counting function.
Video Detection Camera can be installed easily on existing or new infrastructure.

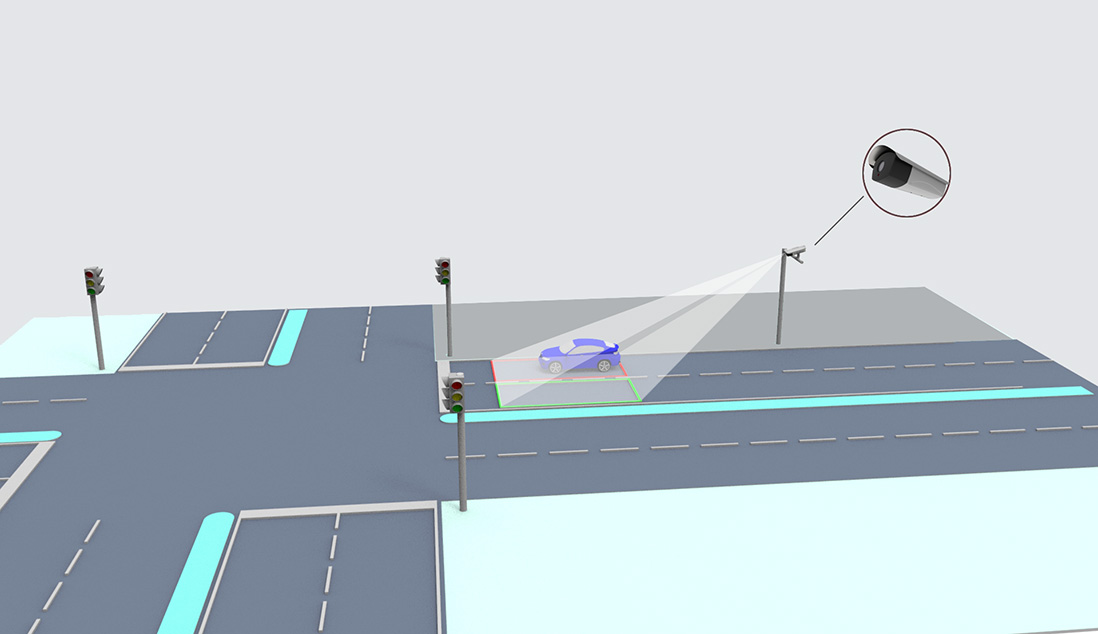

Video images from the detector enable accurate positioning of multiple exist detection area.
Transmitting relevant information to traffic signal when Video Detection Carmera performing vehicle
presence detection.
About product instruction
This user manual indicate that the installation and setting of the Video DetectionCamera. This system uses
the Output Board as the Video Detection Camera, a bridge between computers and traffic signals.

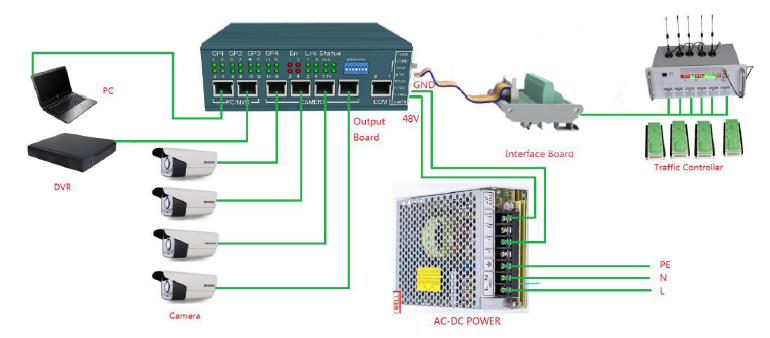

System architectureas as below:

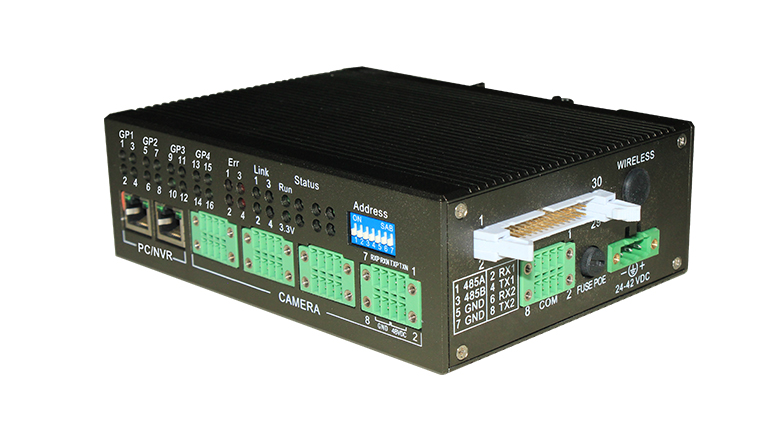

| Model | TCO-4ST |
| Dimension | 163mm X 121mm X 56mm |

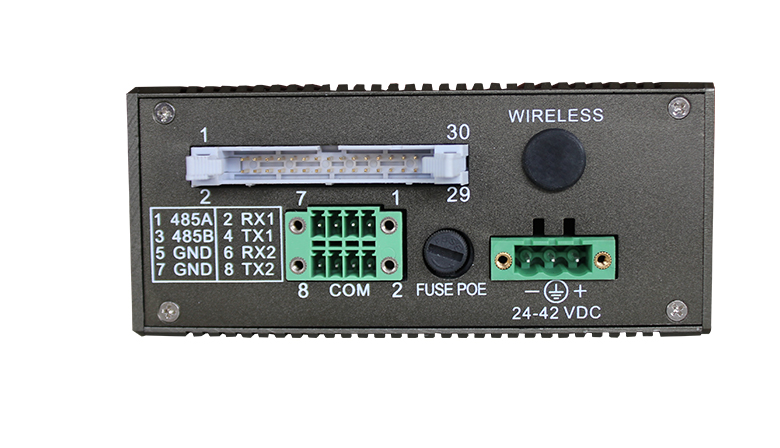

| Ports | COM interface of RG45, including 485 x 1,232 x 2, |
| Ethernet (TCP/IP) communication | LAN port x 2, connect the PC & NVR |
| POE port x 4 connected traffic camera | |
| Protocol Compatibility | Transparent transmission，Noble Protocol and other custom protocols |
| Input | |
| Address dialing | 7 pin |
| Output | |

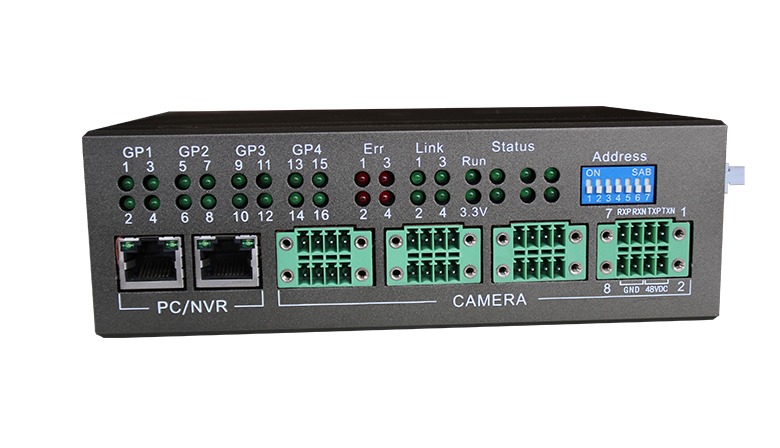

| Detection result output | Each camera is equipped with 4 output channels for a total of 16 |
| Detection result output indicator | 16 |
| Camera connection indicator | 4 |
| Camera fault indicator | 4 |

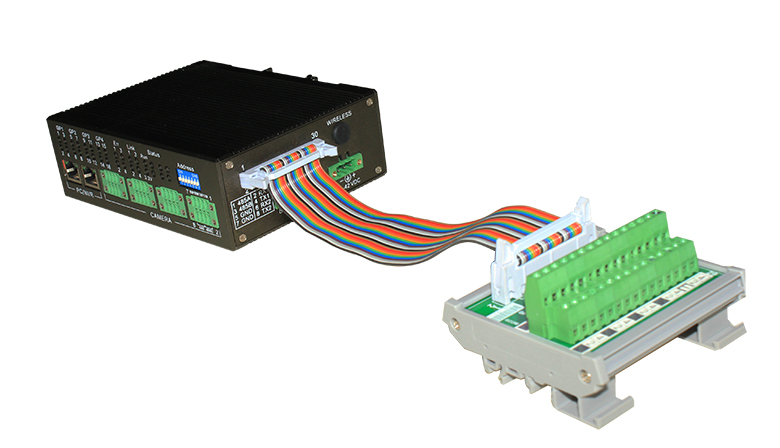

| Connector (side) | double row 30-pin horn stand |
| POWER SUPPLY | 12 ~ 48V DC 2A |
| Protection level | IP54 |
| Working temperature | -40℃ ~ 85℃ |
| Operating humidity Humidity | 0 to 95% relative humidity - No condensation |
| Certification | CE |
