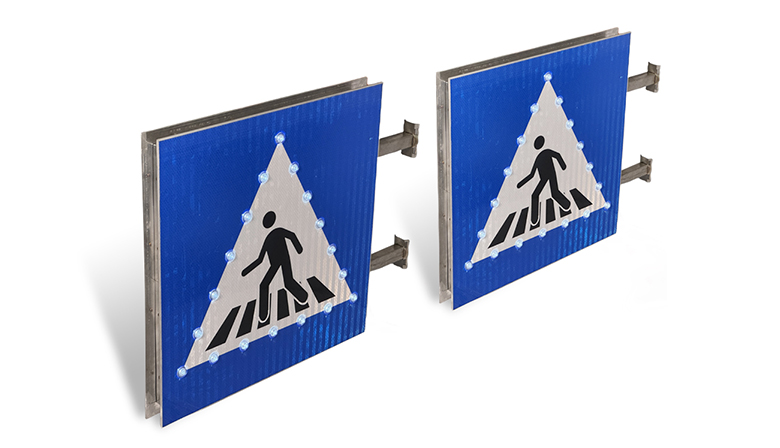

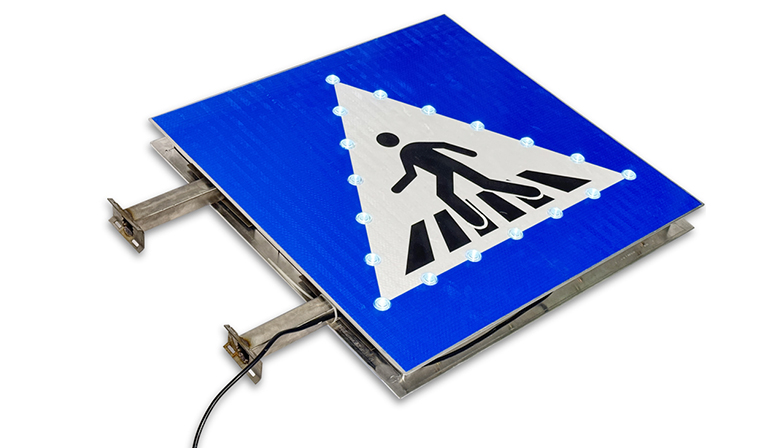

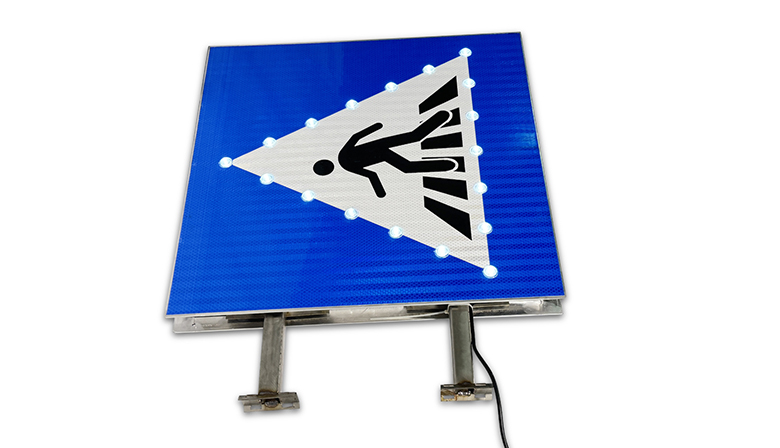

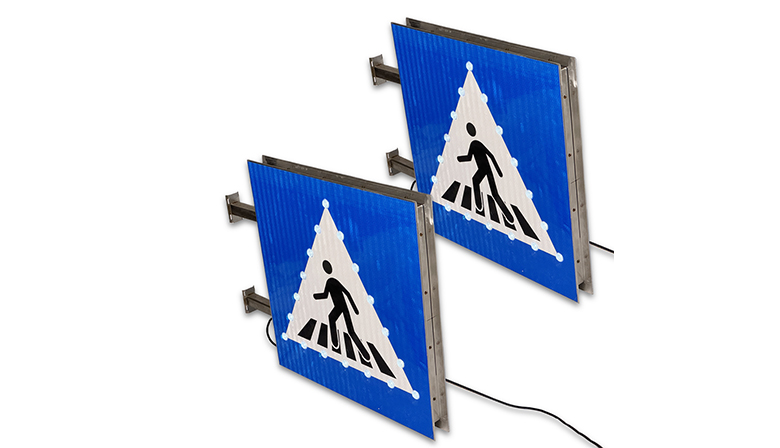

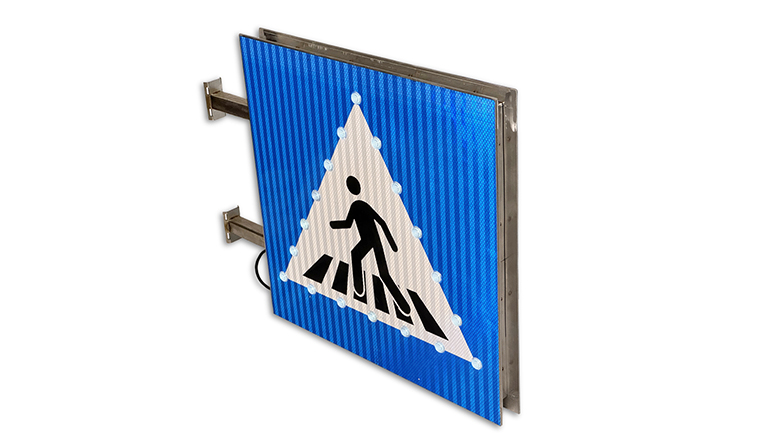

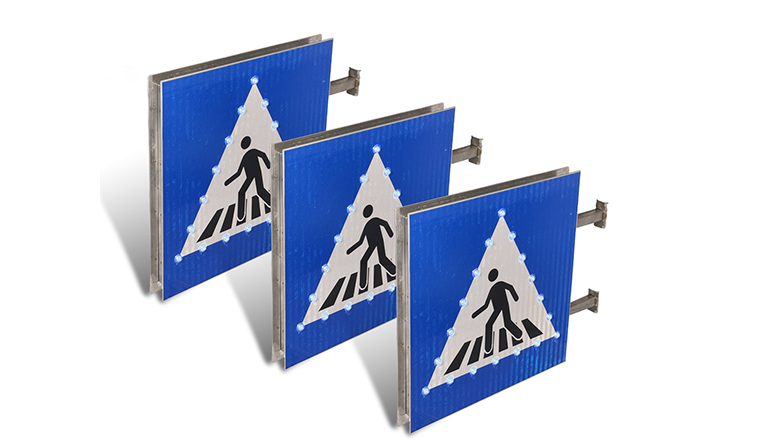

pedestrian sign


Energy-saving walk cross blue pedestrian sign

( 1Year Warranty walk cross blue pedestrian sign)
Features/Benefits Specifications Project Download

The rhombus pedestrian sign is a traffic sign designed to remind drivers to slow down and pay attention to pedestrians. It is installed at pedestrian-dense intersections, turning sections, school zones, or appropriate positions before pedestrian crossings that are not easily noticed by drivers. Its purpose is to alert drivers to the presence of pedestrians ahead, prompting them to slow down sign ificantly and thus greatly reduce the occurrence of traffic accidents.

The pedestrian sign features a novel structure, convenient and quick installation, lightweight, waterproof, and uses LED light sources for brighter illumination and longer lifespan. The light is softened through frosted lenses, reducing glare and minimizing potential harm to drivers' eyes during nighttime illumination.the attention of drivers day and night.

Receiver Features
1.Installs easily onto any new or existing sign post
2.Can be integrated into an ITS (Intelligentn Transportation System)
3. Can be programmed to operate continuously (24/7) or triggered by optional push-button,wireless bollard or pedestrian motion detectors
4. Proprietary circuitry automatically adjusts ligh output for maximum visibility and battery efficiencyt
5. Heightened driver awareness
6.Increased visibility at high incident intersections




                    Product feature:

Working voltage

12-24VDC

Power R/7.8W G/9.8W
LED model SMD2835
Quantity of LED 32PCS
Working temperatures -40--60°C)
Brightness R/23000MCD G/38000MCD
Life span 100000H
visual Distancet >500M
Installation Spacing >30-50CMG
Waterproof IP68
reflective material 3M Engineering Grade Film
installation way Hoop
flash frequency 45times/minutes

• New crosswalk locations

• High incident intersections

• Rural roads

• Advance crosswalk warnings

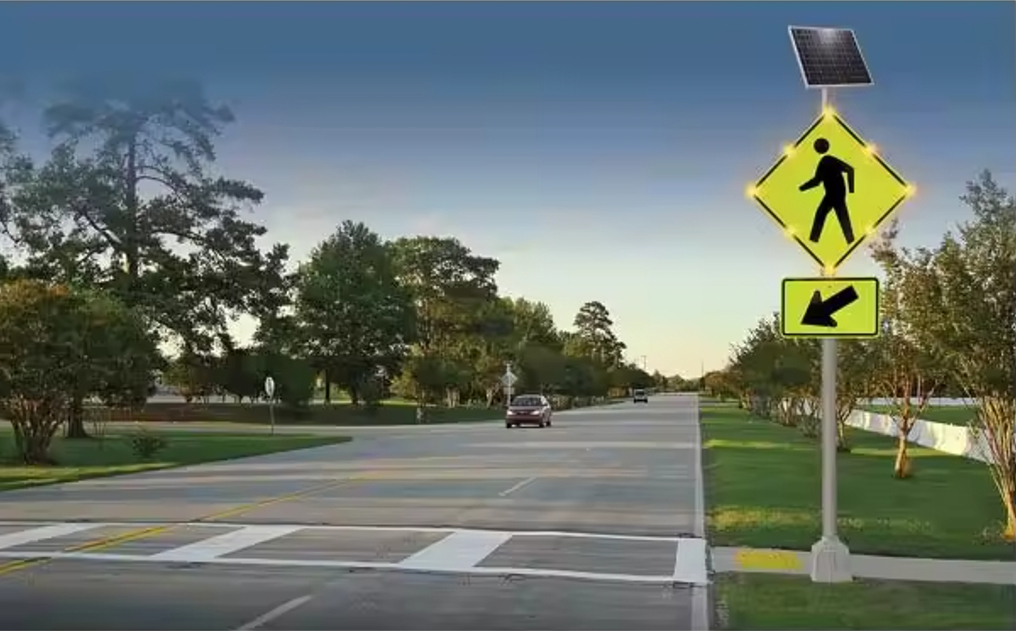

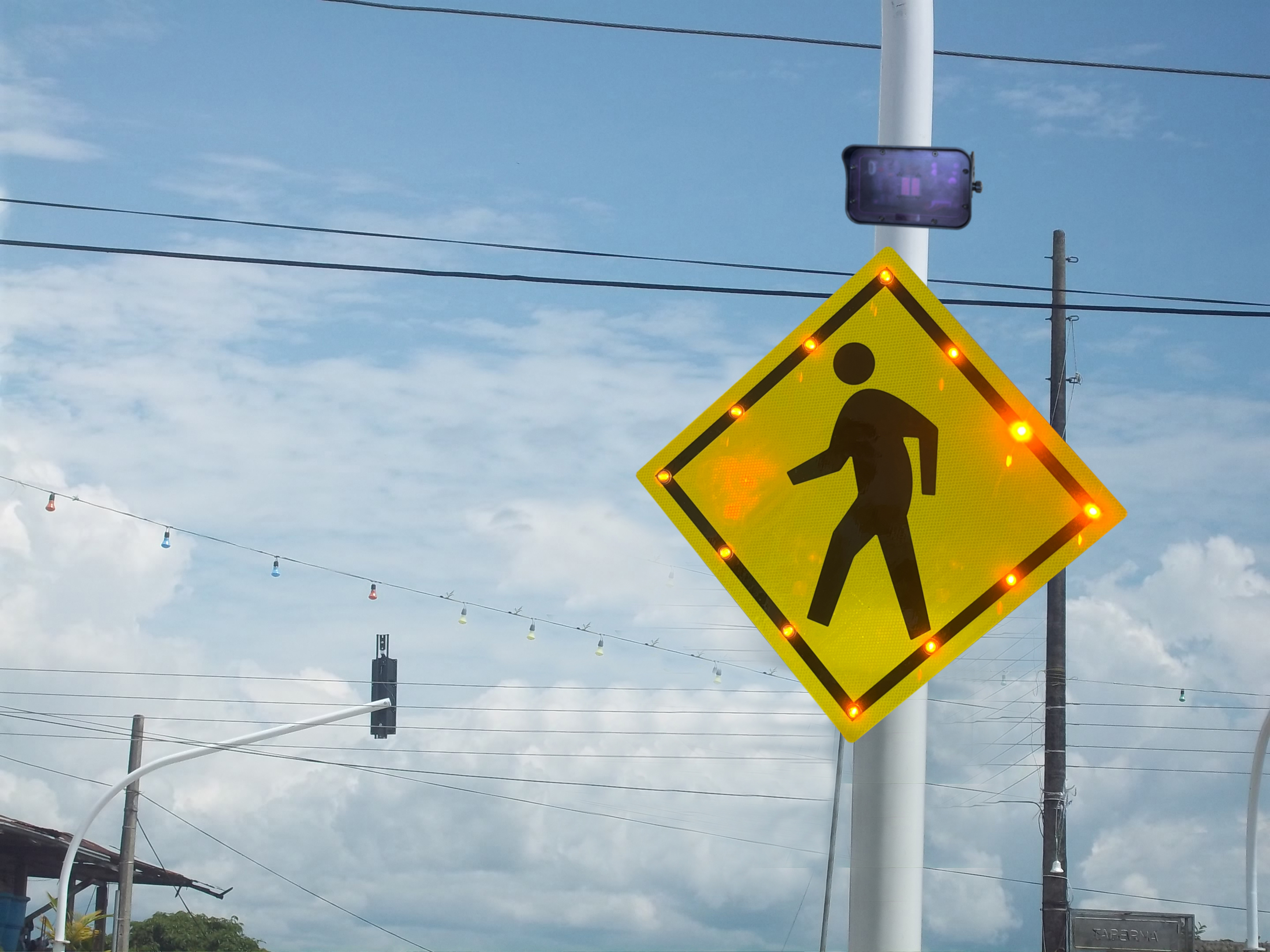

walk cross rhombus pedestrian sign application



walk cross rhombus pedestrian sign application
