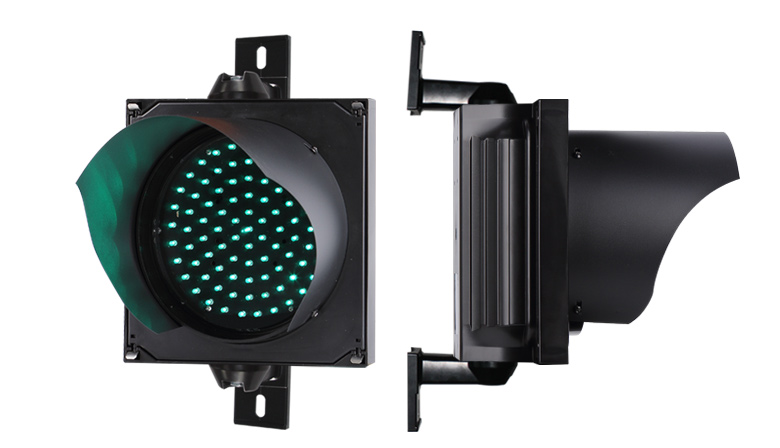

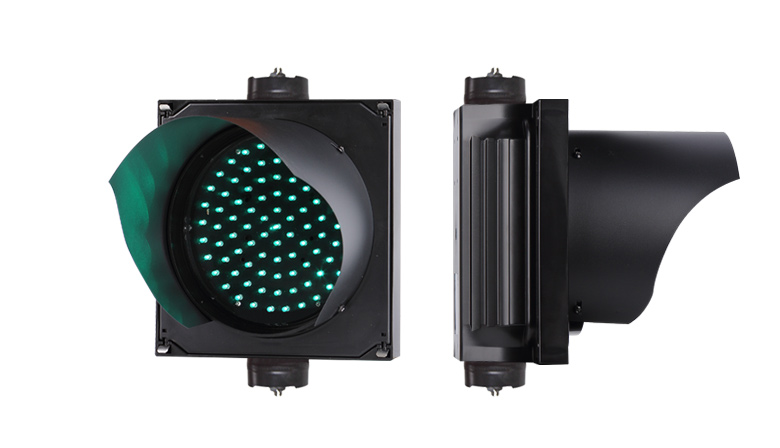

Home > Our Product > LED intelligent traffic signal light series > 200mm traffic light series > 8inch Green full ball traffic light
Features/Benefits Specifications Project Download
•Meets all requirements of CE&ROHS ,ISO9001.
• High luminous output
• Operates in high temperatures
• Moisture resistance
• LED’s driven at low current in order to avoid premature ageing
• Compatible with existing Traffic Controllers in relation to dimming and monitoring
• Long term reliability and operational life
• Low output degradation
• Low sun-phantom intensity
• No veiling reflection
• Durable thermoplastic components
• Exceptional structural strength
• Injection moulded or aluminium pressure diecast modular housing components

Our Advantage
  • Reduce overall operating & mainenance costs:Energy saving:90% reduction in power consumption vs incandescent
  •  Reliability & traffic safety:·Improved visibility over life of the product Reduces emergency lamps outs Design minimizes sun phantom effects
  •  Easy to install into existing signal enclosure

Our Services


 1. All the product of out company have two years warranty.

 2. We can teach you how to install the traffic light and how to operate we can also provide video about our traffic light and you can have a reference.

 3. You can consul us at 24 hours, we have assistant to answer your question.


Model: NBJD211-G
Items Parameters
Size 200mm
Color Green
LEDs (pcs) 90
Wavelength 500±5
Module shape Round
Power consumption (W) <8
Housing material PC ( UV-stabilized polycarbonate)
Voltage (V) 12-24V DC  100-277V AC
Luminance (cd) 800cd
Operating temperature (℃) -30℃~+ 60 ℃
Insulation resistance ≥2M
Total harmonic distortion <20%
IP rate IP65

8inch Green full ball traffic light project
traffic light project
