Home > Our Product > Vehicle loop detector > Dual channel loop detector > Vehicle loop detector
Features/Benefits Specifications Project Download
  • Four step selectable frequency(20-80KHz)
  • Slef-tuning rang: 20-2000uH
  • Sensitivity: 16 levels are adjustable

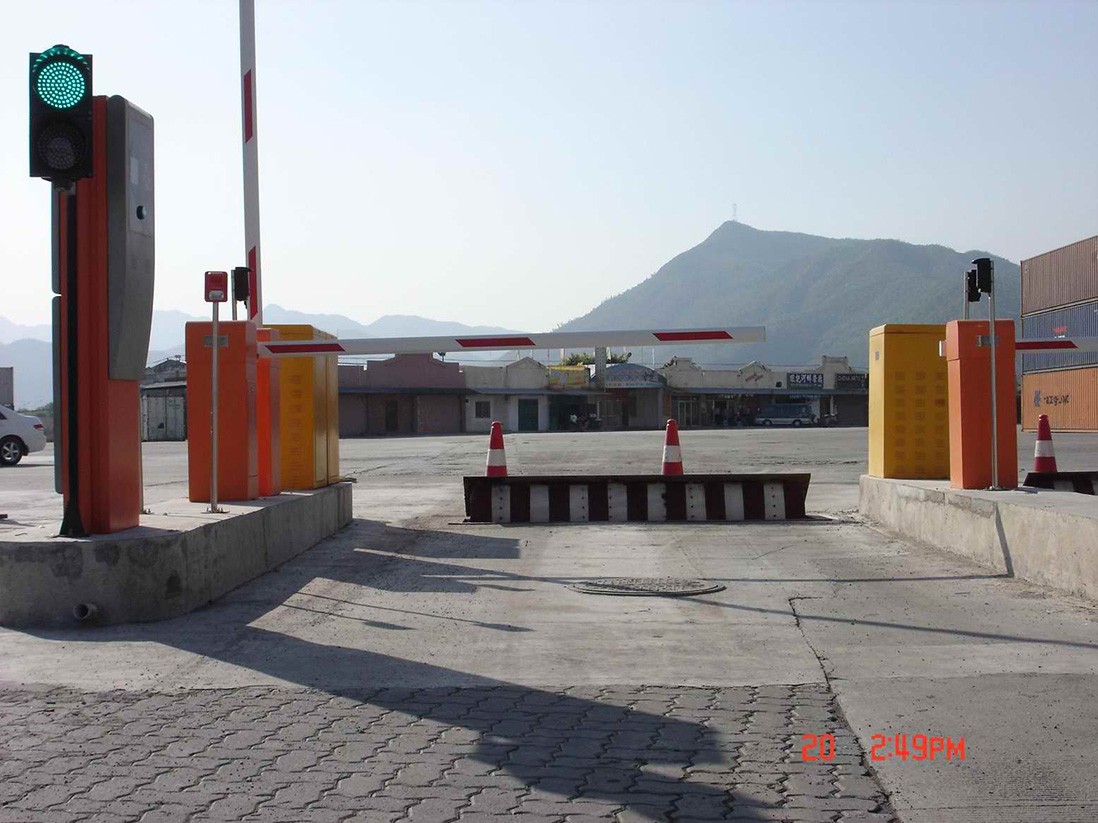

  • Application: Traffic control applications, Toll system, Vehicle counting, Traffic Analysis.
  • Response time: 10-90 ms
  • Connection: 11-pin submarginal type (86cp 1)
  • Relay output: 2 relays, users configurable as presences or pulse output, normally open(N/ON) contact.
  • Loop inductance: Ideal:25uH-1000uh; Max:20uH-1200uH







Customer Reviews:
loop detector

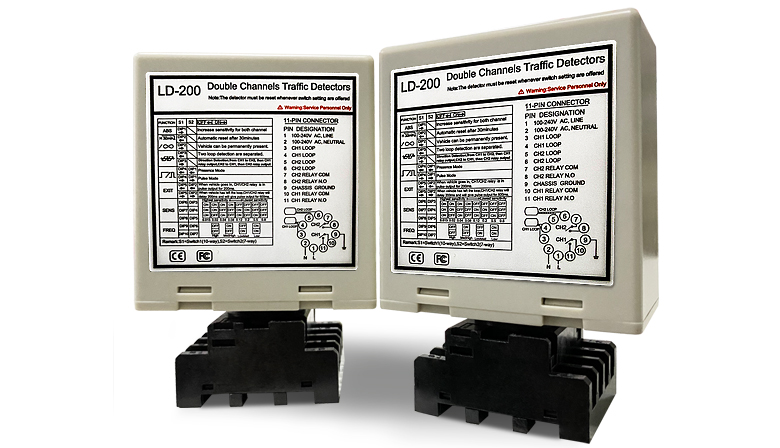

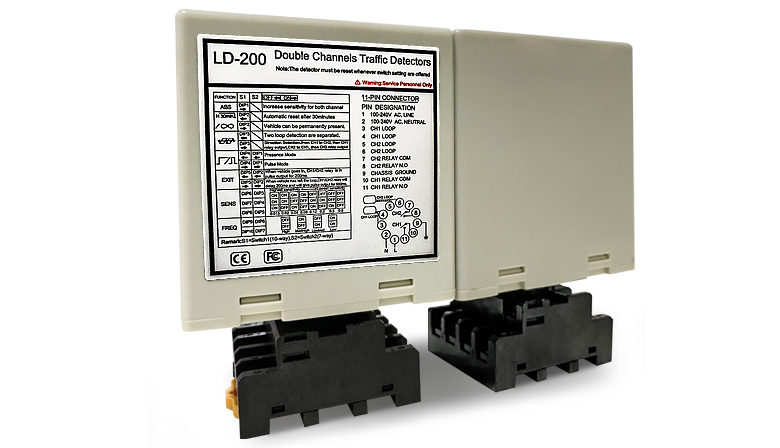

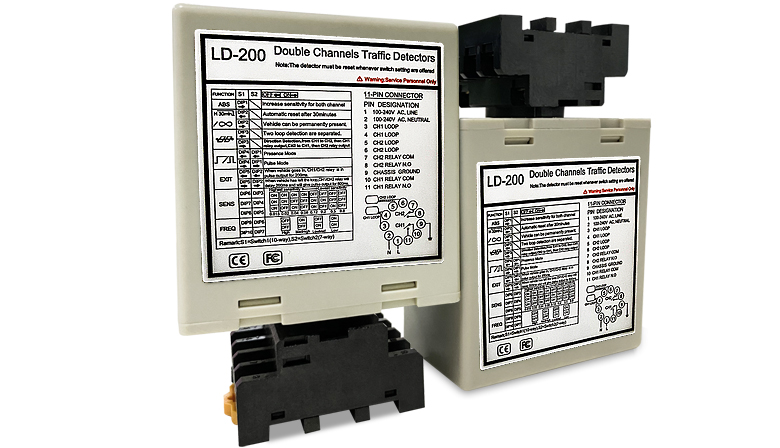

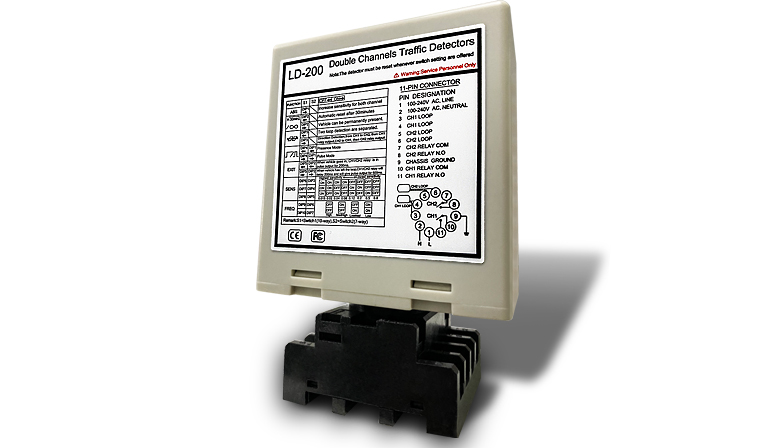

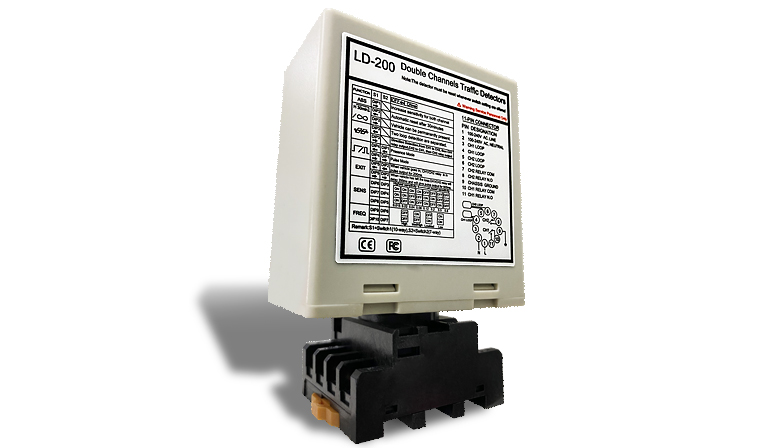

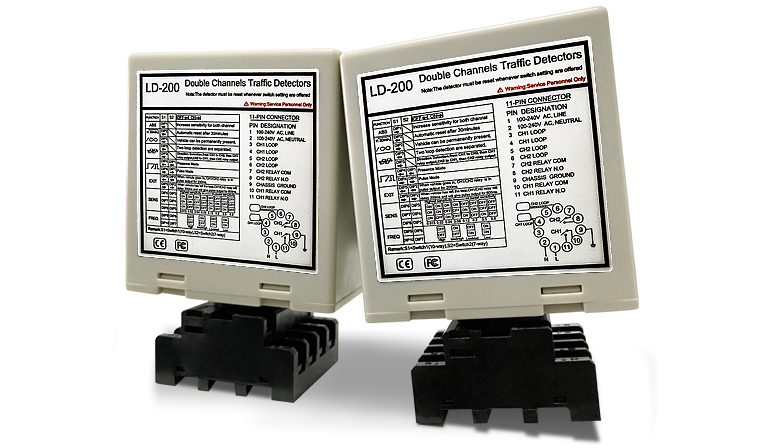

Model: NBLD200
Supply voltage AC: 110V/220V/DC12~24
Frequency range: 20KHz to 100 KHz
Sensitivity: adjustable in 16 increments
Reaction time: 10ms
Loop inductance: Ideal: 100μH to 300μH (incl. conn. wiring)
Environment Compensation: Automatic drift compensation
Loop connection: <5m optimal, twisted at least 20 times per meter, <10Ω total resistor
Operating temperature: -20 to +65ºC
Storage temperature: -40 to +85ºC
Relative Humidity: <90%
